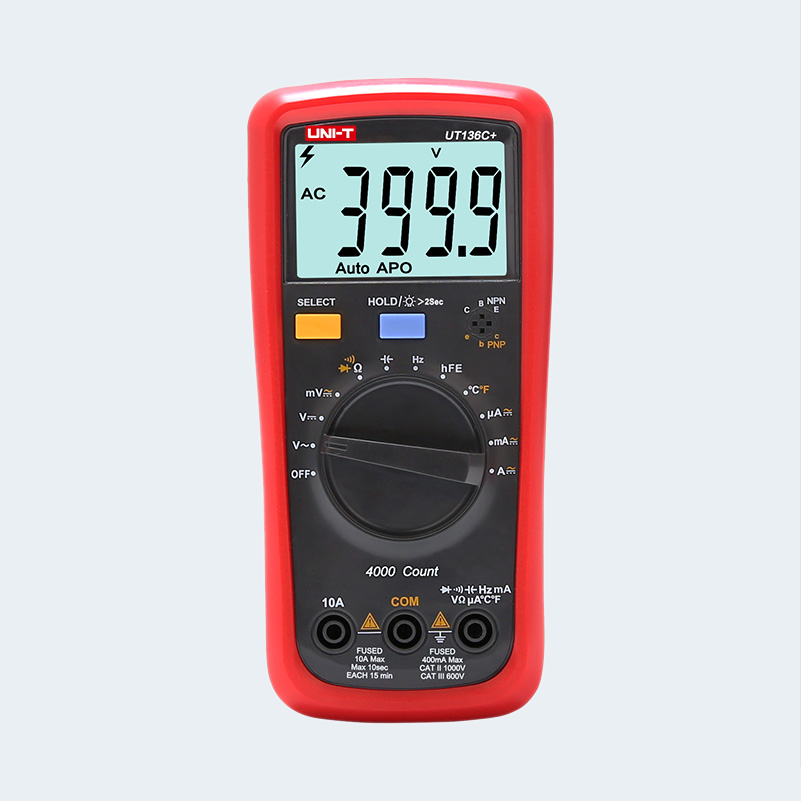

Auto-Range Multi-meter UNI-T UT136

UT136 Series Digital Multimeters UT136C Auto-Range Multi-meter UNI-T (VOLTAGE – CURRENT – RESISTANCE – TEMPERATURE – CONTINUITY) Features of UT136 Series Digital Multimeters ● Measures up to 1000V and 10A AC/DC voltage and current ● Equipped with 3mm protective sleeve; 2 meters drop proof ● Large LCD display; Overload alarm ● Quick sampling rate, up to 4 times/s ● Quick capacitor measurement (measures 1mF in 4 seconds) ● Low power consumption and auto power saving function; long battery service life (>500hrs) Specifications of UT136 Series Digital Multimeters Specifications Range UT136B UT136C DC voltage (V) 1000V ±(0.7% 3) ±(0.7% 3) AC voltage (V) 1000V ±(1% 3) ±(1% 3) DC current (A) 10A ±(1% 3) ±(1% 3) AC current (A) 10A ±(1.2% 5) ±(1.2% 5) Resistance (Ω) 40MΩ ±(0.8% 2) ±(0.8% 2) Capacitance (F) 40mF ±(3% 5) ±(3% 5) Frequency (Hz) 400Hz~40mHz ±(0.1% 4) ±(0.1% 4) Temperature (°C) -40~1000℃ ±(1% 4) Temperature (℉) -40~1832℉ ±(1.5% 5) Features Display count 4000 4000 hFE Transistor measurement √ √ NCV Non-contact voltage detection √ Diode/transistor √ √ Continuity buzzer √ √ Data hold/Auto power off √ √ Low battery/Indication √ √ LCD backlight √ √ Safety rating CAT Ⅱ 1000V, CAT Ⅲ 600V √ √ Drop test 2m √ √ General Characteristics Power 1.5V battery (R6) x 2 Display 56.5mm x 36mm Product color Red and grey Product net weight 330g Product size 175mm x 83mm x 53mm Standard accessories Batteries, test leads, temperature probe (UT136C ) Standard individual packing Gift Box, English manual Standard quantity per carton 30pcs Standard carton measurement 390mm x 335mm x 340mm Standard carton gross weight 12.75kg     نعتذر الشراء من الموقع متوقف مؤقتا     We apologize : purchasing from our website is temporarily stopped
